When you send an MT message using outboundMessageRequest, you get back a resourceURL which you can use to check the delivery status of the sent message.
{
"resourceReference" : {
"resourceURL" : "https://api.opaali.telia.fi/production/messaging/v1/outbound/tel%3A%2B358000000000/requests/3eef0382-0014-45ea-9ee5-1ebce10e829d"
}
}
API Reference
Based on what the API Reference says, this seems easy:

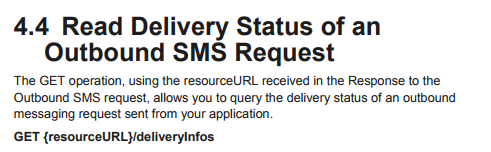

API Reference for Read Delivery Status
We just need to make a simple HTTP GET operation with the resourceURL appended with “/deliveryInfos”:
$ curl -v -k "https://api.opaali.telia.fi/production/messaging/v1/outbound/tel%3A%2B358000000000/requests/3eef0382-0014-45ea-9ee5-1ebce10e829d/deliveryInfos"
--header "Accept: application/json" --header "Authorization: Bearer $access_token"
And when we do that, we get:
$ curl -v -k "https://api.opaali.telia.fi/production/messaging/v1/outbound/tel%3A%2B358000000000/requests/3eef0382-0014-45ea-9ee5-1ebce10e829d/deliveryInfos"
--header "Accept: application/json" --header "Authorization: Bearer $access_token"
> GET /production/messaging/v1/outbound/tel%3A%2B358000000000/requests/3eef0382-0014-45ea-9ee5-1ebce10e829d/deliveryInfos HTTP/1.1
> Host: api.opaali.telia.fi
> User-Agent: curl/7.47.1
> Accept: application/json
> Authorization: Bearer ed07956e-084c-4c9b-9402-649dca141a0a
>
< HTTP/1.1 200 OK
< accept: application/json
< content-type: application/json
< date: Mon, 31 Jul 2017 14:28:00 GMT
< server: Operator Service Platform
< Content-Length: 316
<
{
"deliveryInfoList" : {
"resourceURL" : "https://api.opaali.telia.fi/production/messaging/v1/outbound/tel%3A%2B358000000000/requests/3eef0382-0014-45ea-9ee5-1ebce10e829d/deliveryInfos",
"deliveryInfo" : [ {
"address" : "tel:+358403219113",
"deliveryStatus" : "DeliveredToNetwork"
} ]
}
}* Connection #0 to host api.opaali.telia.fi left intact
There is a limitation to this kind of polling for the delivery status: you can only get one of these statuses:
- DeliveredToNetwork
- DeliveryImpossible
(This is probably to keep the load on the system lower - delivery status is monitored from the SMSC only when specifically requested by adding the notifyRequest.)
Polling vs. Push Notifications
There is also another way to get delivery status for MT messages: requesting a Push Notification to a notifyURL (also known as a callbackURL), which is the way you would probably want to do it when your application is in production use.
You can do this by adding a receiptRequest element to your outboundMessageRequest (include a unique, message specific URL as your notifyURL so you can match the callback to the original message):
"receiptRequest":{"notifyURL":"http://52.212.225.145:8080/mynotif1234", "notificationFormat":"JSON"}
Sending an MT message with a receiptRequest:
$ curl -v -k -d '{"outboundMessageRequest":{"address":["tel:+358403219113"],"senderAddress":"tel:+358000000000","outboundSMSTextMessage":{"message":"Hello
rld"},"senderName":"JPLa","receiptRequest":{"notifyURL":"http://52.212.225.145:8080/mynotif1234", "notificationFormat":"JSON"}}}' "https://api.opaali.telia.fi/production/messaging/v1/outbound/tel%3A%2B358000000000/requests" --header "Content-Type:application/json" --header "Authorization: Bearer $access_token"
> POST /production/messaging/v1/outbound/tel%3A%2B358000000000/requests HTTP/1.1
> Host: api.opaali.telia.fi
> User-Agent: curl/7.47.1
> Accept: */*
> Content-Type:application/json
> Authorization: Bearer 164f135c-4813-4438-9792-13a3e0e5cff6
> Content-Length: 268
>
< HTTP/1.1 201 Created
< accept: */*
< content-type: application/json
< date: Tue, 01 Aug 2017 12:11:27 GMT
< location: https://api.opaali.telia.fi/production/messaging/v1/outbound/tel%3A%2B358000000000/requests/5c77bd67-c27f-4cf8-81ee-ef3038f0256c
< server: Operator Service Platform
< Content-Length: 184
<
{
"resourceReference" : {
"resourceURL" : "https://api.opaali.telia.fi/production/messaging/v1/outbound/tel%3A%2B358000000000/requests/5c77bd67-c27f-4cf8-81ee-ef3038f0256c"
}
}
You will need to have set up your own server software to handle the callbacks. When the delivery status of the message changes, you will receive a HTTP POST request from Opaali:
POST /mynotif1234 HTTP/1.1
Content-Type: application/json; charset=UTF-8
Accept: application/json
Host: 52.212.225.145:8080
Transfer-Encoding: chunked
173
{
"deliveryInfoNotification" : {
"deliveryInfo" : [ {
"address" : "tel:+358403219113",
"deliveryStatus" : "DeliveredToTerminal"
} ],
"link" : [ {
"rel" : "OutboundMessageRequest",
"href" : "https://api.opaali.telia.fi/production/messaging/v1/outbound/tel%3A%2B358000000000/requests/5c77bd67-c27f-4cf8-81ee-ef3038f0256c"
} ]
}
}
0
This requires that:
- your own firewall has open access to requests from Opaali (Opaali outbound traffic comes from IP 79.98.236.21)
- if your server that handles the callbacks is located at a “nonstandard port” (i.e. something other that 80,8080,443,8443) you will need to request a firewall opening at the Opaali end from opaali-tuki@teliacompany.com
As a bonus also the status DeliveredToTerminal is now available when you have specifically expressed your desire to follow the delivery status (by adding that receiptRequest element).
Subscriptions?
Opaali R4 added “Outbound and Inbound subscriptions via Messaging API to setup partner notifications”. I haven’t tried these myself yet, so I’ll return to this topic later. Looks like the documentation could be better, however…
JPLa is a member of the Content Gateway (CGW) to Opaali migration team, specialising in programming related issues and API usage.
